New Honda CB Shine 125 SP Featured New Look
Last updated on 18-Aug-2024 , By Arif Raihan Opu

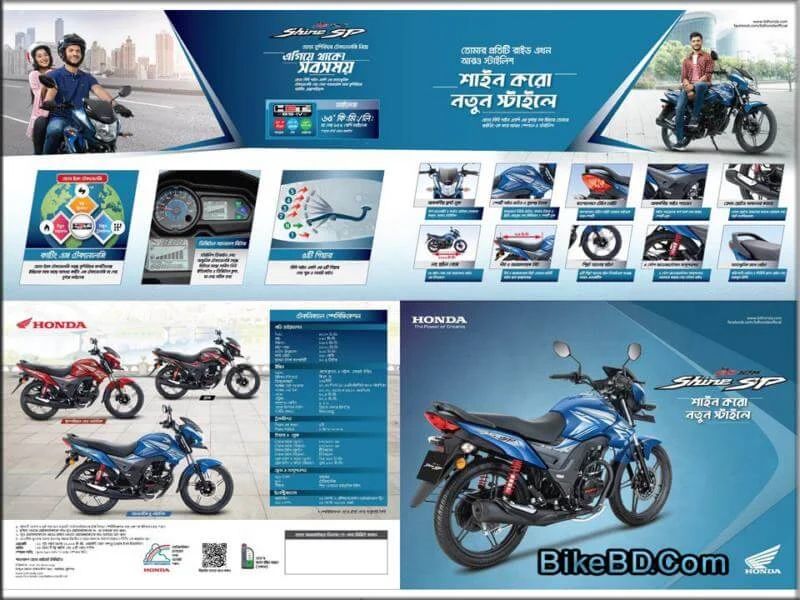

Honda Motorcycle featured new Honda CB Shine 125 SP with new shade, styling and look. Along with a few feature enhancements it also expected to hit our market soon. Hence we are here with the New Honda CB Shine 125 SP Featured New Look. So let’s get the featured sketch of the motorcycle.
New Look & Appearance
The new Honda CB Shine 125 SP is not an all-new bike but it refreshed with new look and appearance. The motorcycle carries significant changes in the body panel, cowling, and headlamp assembly. Therefore the exterior is refreshed with the new design, look and color scheme.
The new CB Shine 125 SP comes with the new design of fuel tank. The fuel tank carries new bikini fender on its both sides. It carries a different curve and schemed with new color and sticker job. Moreover, the side panel and rear panel design also updated with new color and shades.
Also Read: Honda CB Shine Bike Price In BD

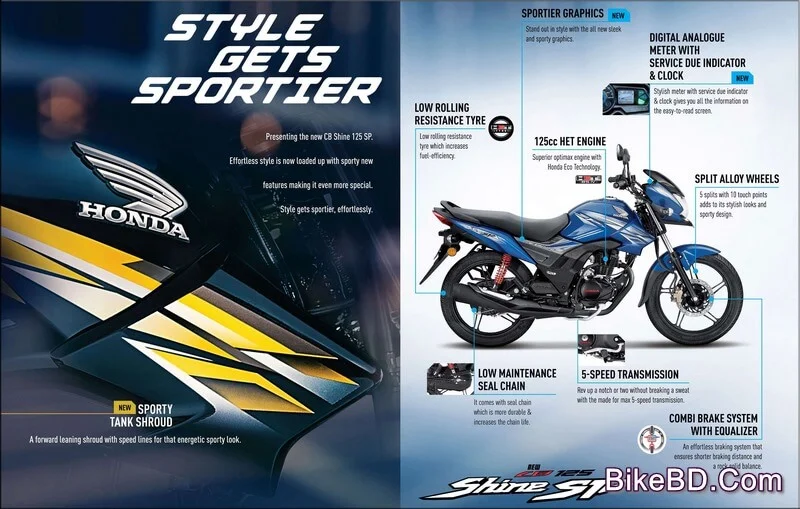

The headlamp assembly of the new CB Shine 125 also updated with new design work. The ODO is the combo unit with an analog speedometer and digital display. Furthermore, enhancement also comes with the wheel rim design. The alloy rims are now more attractive with sporty 10 alloy spokes. Hence overall the motorcycle looks sportier, smart and cool.
Wheel, Brake & Suspension
The new Honda CB Shine 125 SP comes with the new design of 10 spoke alloy rim, we mentioned earlier. The tires are the same in dimension both in front and rear. Here both tires are also tubeless typed.
In the braking system, the new SB Shine 125 SP comes with few options. The standard model comes with hydraulic disk braking system in front and drum-braking in the rear. But the front drum braking system is also available for economic customers. Moreover, the front disk brake version also comes with CBS Combi-braking as another option.
Also Read: Honda CBR150R 2016 Thailand Version - First Impression
Coming to the suspension system, it is an upright telescopic suspension in the front. Here the rear setup is double unit those are adjustable in three steps. Those are spring-loaded shock absorbers attached with the tail end of the swingarm.
Honda CB Shine 125 SP – Engine & Specification
The new Honda CB Shine 125 SP comes with the same engine as was previous. But the engine is tweaked and refreshed along with India’s BS-IV standard. Hence along with Honda’s HET technology, it’s now more efficient in producing power and ensuring fuel economy.
Therefore the new motorcycle engine is carburetor feed five-gear air-cooled engine. The engine can produce 10.16BHP of power and 10.30NM of torque. Hence for more information and specification here we stamped the official specification table below.
Specification | Honda CB Shine 125 SP |
Engine | Single Cylinder, Four Stroke, Air Cooled SI 2 Valve BSIV Engine |
Displacement | 124.73cc |
Bore x Stroke | 52.4mm x 57.8mm |
Compression Ratio | 9.2:1 |
Maximum Power | 7.58 kW (10.16BHP) @ 7,500 RPM |
Maximum Torque | 10.30NM @ 5,500RPM |
Fuel Supply | Carburetor |
Ignition | CDI |
Starting Method | Kick & Electric Start |
Clutch Type | Wet, Multiple-disc |
Lubrication | Wet Sump |
Transmission | 5 Speed, Pattern N-1-2-3-4-5 |
Dimension | |
Frame Type | Diamond |
Dimension (LxWxH) | 2,007mm x 762mm x 1,085mm |
Wheelbase | 1,266mm |
Ground Clearance | 160mm |
Saddle Height | Not Found |
Weight (Kerb) | 120kg (FR Drum) / 121kg (FR Disc) / 123kg (FR Disc & CBS) |
Fuel Capacity | 10.5 Liters |
Engine Oil | 1.0 Liters |
Wheel, Brake & Suspension | |
The suspension (Front/Rear) | Telescopic Fork/ Spring Loaded Hydraulic Double Shock Absorber |
Brake system (Front/Rear) | 240mm Disk (130mm Drum Optional) / 130mm Drum |
Tire size (Front / Rear) | Front: 80/100-18 Rear: 80/100-18 Both Tubeless |
Battery | 12V 3Ah(MF) |
Headlamp | 12V 35/35W |
Speedometer | Digital Analog Combo Meter |
*All the specifications are subject to change upon company rules, policy, offer & promotion. BikeBD is not liable for the changes.
New Honda CB Shine 125 SP – The New Companion
So, readers, you can see the new Honda CB Shine 125 SP is new and refreshed motorcycle. It’s now more appealing and also tweaked for better performances and efficiency. So get your new companion, hence ride safe and stay safe.
